Hydro-Meteorology

Climate change makes for more extreme weather. The main reasons for this are wind and precipitation.That is why an increasing number of meteorological and hydrological monitoring networks are coming together. Global coverage with hydro-meteorological measuring technology is varied. Very old and very modern (new) measuring networks are used for climate monitoring worldwide. And there are still large gaps, for example on the oceans.

Sample of hydro-meteorological (HydroMet) applications:

Climate research, reliable short, medium and long-term forecasts and timely alarms in extreme weather are classical tasks of weather monitoring. This requires dense monitoring networks and accurate measurement data in real time. The applications vary. The budgets are also different worldwide. Open technologies are therefore required: modularity, variant diversity and simple plug and play installations.

"Smart sensor technology for long-term use"

Do you have any questions or do you need advice?

Get in contact with us

Compact Weather Sensor WS800 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes

WS800-UMB Smart Weather Sensor

First and only compact all-in-one weather sensor with detection of lightning strikes

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes.

  • temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation, lightning strikes
  • Ultrasonic/Wind, NTC/T, Capacitive/RH/Pressure, Thermopile/Radiation, Radar/Precipitation, radio wave emission/Lightning strikes
  • First and only compact all-in-one weather sensor with lightning detection, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
Compact Weather Sensor WS800 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes

WS700-UMB Smart Weather Sensor

All-in-one weather sensor with measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed and radiation.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed and radiation.

  • Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed, radiation
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Thermopile/Radiation, Radar/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

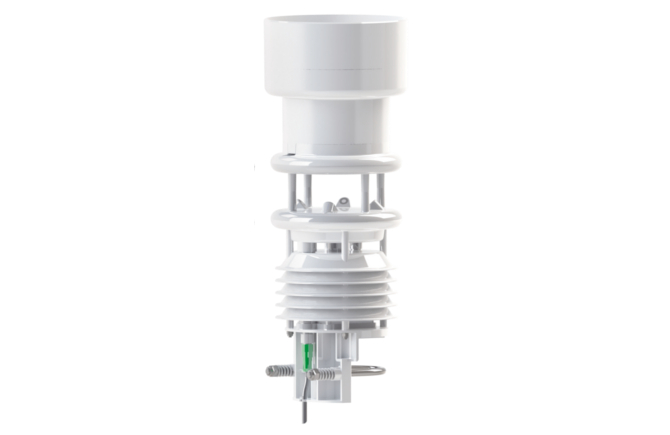

Compact Weather Sensor WS601 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation, precipitation (with reduction ring)

WS601-UMB Smart Weather Sensor

Compact all-in-one weather sensor with measurement of temperature, relative humidity, precipitation, air pressure, wind direction and wind speed.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation, air pressure, wind direction and wind speed.

  • Temperature, relative humidity, precipitation, air pressure, wind direction, wind speed
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Tipping spoon and bucket/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
Compact Weather Sensor WS500 with detection of temperature, relative humidity, air pressure, wind direction, wind speed

WS500-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity, air pressure, wind direction and wind speed.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure, wind direction and wind speed.

  • Temperature, relative humidity, air pressure, wind direction and wind speed
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
Compact Weather Sensor WS400 with detection of temperature, relative humidity, air pressure, precipitation intensity, precipitation quantity

WS400-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure.

  • Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure
  • NTC/T, Capacitive/RH, MEMS capacitive/Pressure, 24 GHz Doppler radar/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

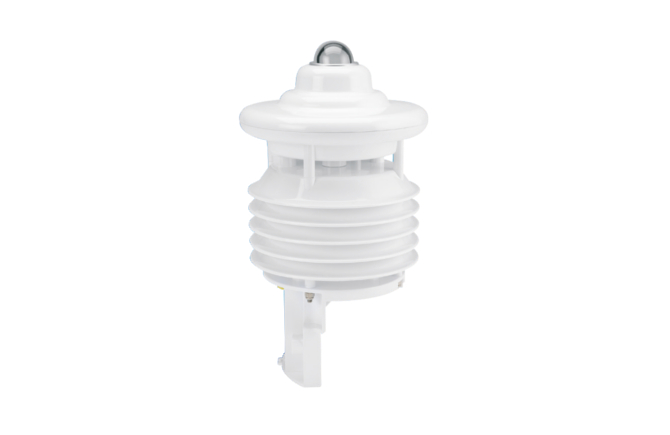

Compact Weather Sensor WS301 with detection of temperature, relative humidity, air pressure, radiation

WS301-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity, air pressure and radiation.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure and radiation.

  • Temperature, relative humidity, air pressure, radiation
  • NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Kipp&Zonen Pyranometer/Radiation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
Compact Weather Sensor WS300 with detection of temperature, relative humidity, air pressure

WS300-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity and air pressure.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity and air pressure.

  • Temperature, relative humidity, air pressure
  • NTC/T, Capacitive/RH, MEMS capacitive/Pressure
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
Lufft R2S radar rain sensor - maintenance-free detection of rain - fast response time - rain type - precipitation gauge

Radar Precipitation Sensor R2S-UMB

The radar precipitation sensor Lufft R2S-UMB allows fast measurement of precipitation intensity and distinguishs between precipitation type (Rain, snow, sleet, freezing rain, hail). The operation is maintenance-free, thanks to radar measurement technology

The radar precipitation sensor Lufft R2S-UMB allows fast measurement of precipitation intensity and distinguishs between precipitation type (Rain, snow, sleet, freezing rain, hail). The operation is maintenance-free, thanks to radar measurement technology.

  • Rain/precipitation quantity, rain/precipitation type (Rain, snow, sleet, freezing rain, hail)
  • 24GHz Doppler radar
  • Very fast response time, maintenance-free measurement, present weather detection
  • RS-485, various RS-485-protocols, analogue output
VENTUS Anemometer - ultrasonic wind sensor - sonic wind sensor for wind turbine control

VENTUS-UMB Ultrasonic Wind Sensor

Extremely precise and maintenance-free measurement of wind speed and wind direction even in the lowest temperature

Thanks to the ultrasonic measuring method the wind sensor Lufft Ventus has no moving parts and therefore needs almost no maintenance. It measures wind speed and wind direction according to the WMO guideline and acquires the barometric pressure.

  • Wind speed, wind direction, virtual temperature, barometric pressure
  • Ultrasonic
  • Maintenance-free measurement, suitable for extreme ambient conditions, ice-free operation, vibration and seawater resistant, compatible interfaces
  • SDI-12, RS-485 with supported protocols Binary, ASCII, NMEA, Modbus & analogue output
V200A Anemometer - ultrasonic wind sensor - sonic wind sensor for wind turbine control

V200A Ultrasonic Wind Sensor

Extremely precise and maintenance-free measurement of wind speed and wind direction

Ultrasonic Wind Sensor, plastic housing and 20W-heater

  • Wind speed, wind direction, virtual temperature, barometric pressure
  • Ultrasonic
  • Maintenance-free measurement, suitable for extreme ambient conditions, ice-free operation, compatible interfaces
  • SDI-12, RS-485, various RS-485-protocols, analogue output
Lufft Snow depth sensor SHM 31 - Lufft snow height sensor SHM 31 - snow level detection

Snow Depth Sensor SHM31

The laser-based snow depth sensor Lufft SHM31 stands for millimeter-accurate snow level detection over long distances in all weather conditions without any maintenance, due to opto-electronic/laser based rangefinder technology.

The laser-based snow depth sensor Lufft SHM 31 stands for millimeter-accurate snow level detection over long distances in all weather conditions without any maintenance, due to opto-electronic/laser based rangefinder technology.

  • Snow depth
  • opto-electronic measuring technique (rangefinder; laser distance sensor) with eye-safe laser
  • Determination of snow depth over long distances, heating options allow high quality measurements in all weather conditions, simplified installation due to automatic inclination angle compensation
  • RS485 & RS232 with UMB, UMB-ASCII 2.0 & SDI12 protocol
Lufft Snow depth sensor SHM 30 - Lufft snow height sensor SHM 30

Snow Depth Sensor SHM 30

Compact, reliable and cost-efficient - Accurate measurement of snow depth / snow height sensor SHM30 based on an opto-electronic distance sensor / laser rangefinder technology.

Compact, reliable and cost-efficient. The SHM30 snow depth sensor reliably determines snow depths up to 10 meter within seconds and with Millimeter precision, due to opto-electronic/laser based rangefinder technology.

  • Snow depth
  • opto-electronic measuring technique with eye-safe laser sensor
  • Determination of snow depth over long distances, MTBF (meantime between failure) >40.000h, allows discrimination between snow and grass, very compact and weatherproof housing
  • RS232, RS422, analogue output
