Traffic Weather

Traffic weather is our keyword for every weather monitoring system, that helps to increase safety on roads, railways, in the air and on the sea.

We offer a wide range of sensors and measurement parameters, which have a high influence on the safety in all of this traffic segments, whether this is on airports, roads, ships or on trains.

  • Road & Runway sensors
  • Weather sensors / weather stations
  • Visbility Sensors
  • Wind sensors
  • Snow Depth Sensors
  • Cloud height sensors / LIDAR Ceilometers

Do you have any questions or do you need advice?

Get in contact with us

Compact Weather Sensor WS800 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes

WS700-UMB Smart Weather Sensor

All-in-one weather sensor with measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed and radiation.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed and radiation.

  • Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed, radiation
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Thermopile/Radiation, Radar/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

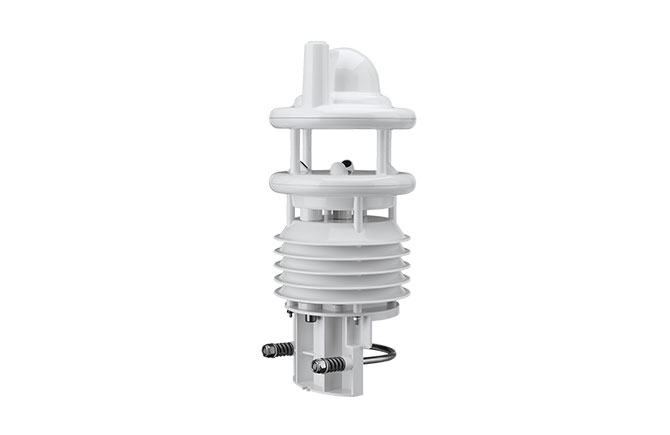

Compact Weather Sensor WS800 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes

WS800-UMB Smart Weather Sensor

First and only compact all-in-one weather sensor with detection of lightning strikes

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation and lightning strikes.

  • temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation, lightning strikes
  • Ultrasonic/Wind, NTC/T, Capacitive/RH/Pressure, Thermopile/Radiation, Radar/Precipitation, radio wave emission/Lightning strikes
  • First and only compact all-in-one weather sensor with lightning detection, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

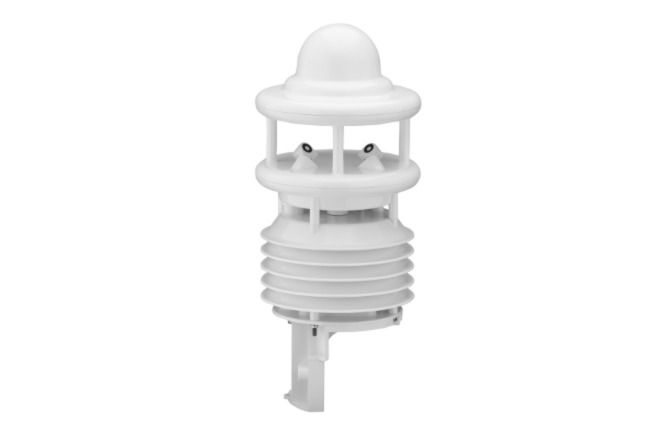

Compact Weather Sensor WS600 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity

WS600-UMB Smart Weather Sensor

Compact all-in-one weather sensor with measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction and wind speed.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction and wind speed.

  • Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind speed
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, 24 GHz Doppler radar/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

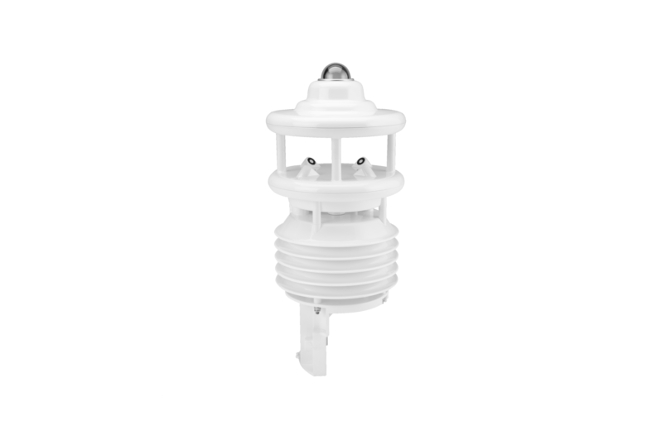

Compact Weather Sensor WS501 with detection of temperature, relative humidity, air pressure, wind direction, wind speed, radiation

WS501-UMB Smart Weather Sensor

Compact all-in-one weather sensor with measurement of temperature, relative humidity, air pressure, wind direction, wind speed and radiation.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure, wind direction, wind speed and radiation.

  • Temperature, relative humidity, air pressure, wind direction, wind speed, radiation
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, Kipp&Zonen Pyranometer/Radiation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

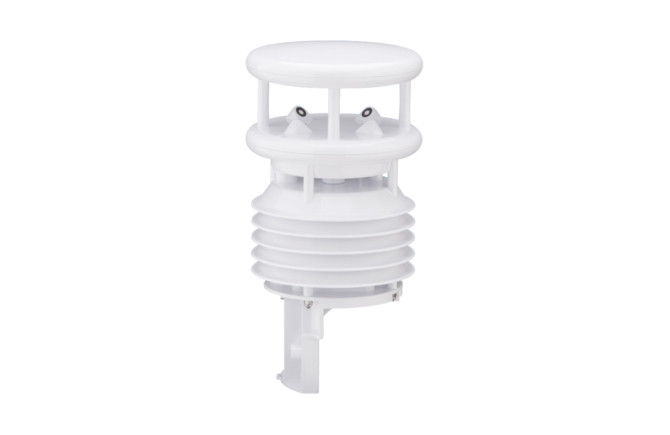

Compact Weather Sensor WS500 with detection of temperature, relative humidity, air pressure, wind direction, wind speed

WS500-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity, air pressure, wind direction and wind speed.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, air pressure, wind direction and wind speed.

  • Temperature, relative humidity, air pressure, wind direction and wind speed
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

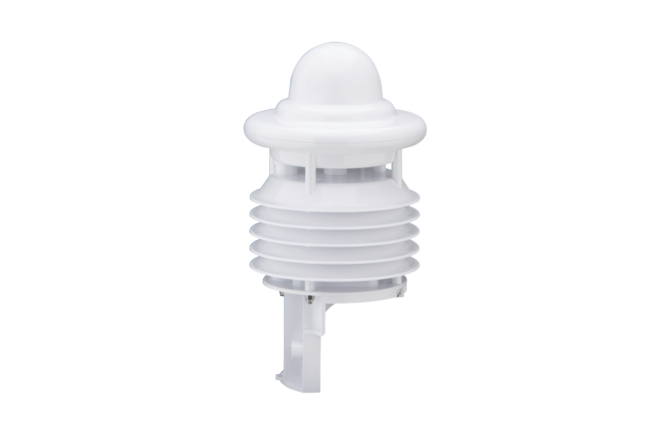

Compact Weather Sensor WS400 with detection of temperature, relative humidity, air pressure, precipitation intensity, precipitation quantity

WS400-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure.

  • Temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity and air pressure
  • Ultrasonic/Wind, NTC/T, Capacitive/RH, MEMS capacitive/Pressure, 24 GHz Doppler radar/Precipitation
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

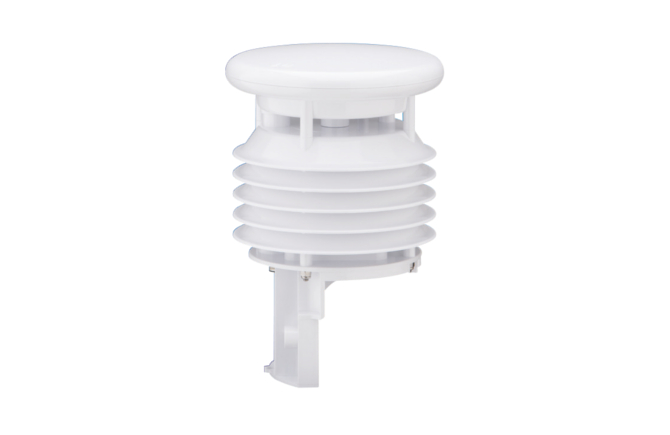

Compact Weather Sensor WS300 with detection of temperature, relative humidity, air pressure

WS300-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of temperature, relative humidity and air pressure.

Compact all-in-one weather sensor from the WS-Series. Measurement of temperature, relative humidity and air pressure.

  • Temperature, relative humidity, air pressure
  • NTC/T, Capacitive/RH, MEMS capacitive/Pressure
  • Compact all-in-one weather sensor, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12

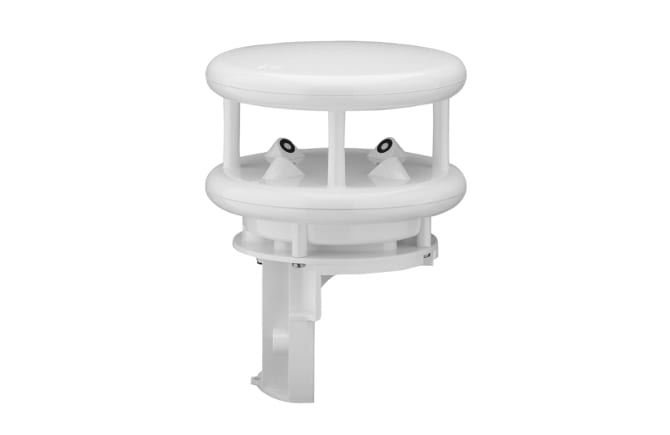

Compact Weather Sensor WS200 with detection of wind direction, wind speed

WS200-UMB Smart Weather Sensor

Compact all-in-one weather sensor for measurement of wind direction and speed.

Compact all-in-one weather sensor from the WS-Series. Measurement of wind direction and speed.

  • Wind direction and speed
  • Ultrasonic/Wind
  • Compact all-in-one weather sensor, low power, heater, maintenance-free operation, open communication protocol
  • RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
V200A Anemometer - ultrasonic wind sensor - sonic wind sensor for wind turbine control

V200A Ultrasonic Wind Sensor

Extremely precise and maintenance-free measurement of wind speed and wind direction

Ultrasonic Wind Sensor, plastic housing and 20W-heater

  • Wind speed, wind direction, virtual temperature, barometric pressure
  • Ultrasonic
  • Maintenance-free measurement, suitable for extreme ambient conditions, ice-free operation, compatible interfaces
  • SDI-12, RS-485, various RS-485-protocols, analogue output
Lufft Visibility Sensor VS20k - detection of visibility, fog, dust - road application, road weather, traffic weather rwis

Visibility Sensor VS20k-UMB

New product version of the known Lufft VS20 visibility sensor with a measurement range of 10...20'000m, easy calibration functionality, sea waterproof housing and (active) spider defence

The VS20k visibility sensor measures visibility up to 20'000 m, ideal for road traffic applications on motorways, highways or bridges. Long life time is guaranteed thanks to the sea-water proof housing design.

  • Visibility (measuring range 10 ... 20'000 m)
  • 45° forward light scattering
  • suitable for extreme ambient conditions, active spider defence, seawater resistant, compatible interfaces
  • RS-485, analogue output

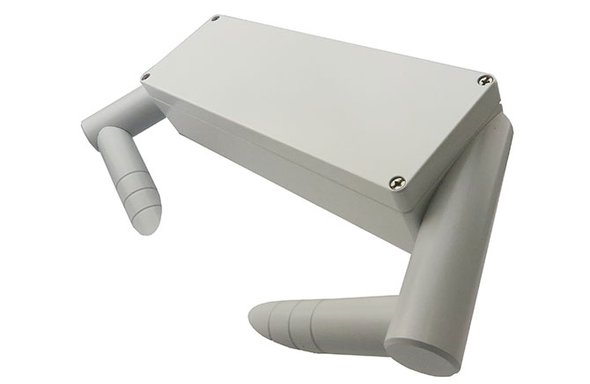

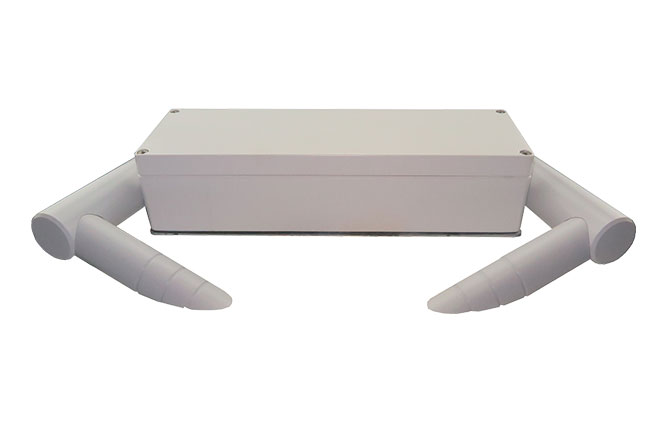

Lufft Visibility Sensor VS2k - detection of visibility, fog, dust - road application, road weather, traffic weather rwis

Visibility Sensor VS2k-UMB

New product version of the known Lufft VS20 visibility sensor with a measurement range of 10...2000m, easy calibration functionality, sea waterproof housing and (active) spider defence

The VS2k visibility sensor measures visibility up to 2000m, ideal for road traffic applications on motorways, highways or bridges. Long life time is guaranteed thanks to the sea-water proof housing design.

  • Visibility (measuring range 10 ... 2000 m)
  • 45° forward light scattering
  • suitable for extreme ambient conditions, active spider defence, seawater resistant, compatible interfaces
  • RS-485, analogue output
Lufft Snow depth sensor SHM 31 - Lufft snow height sensor SHM 31 - snow level detection

Snow Depth Sensor SHM31

The laser-based snow depth sensor Lufft SHM31 stands for millimeter-accurate snow level detection over long distances in all weather conditions without any maintenance, due to opto-electronic/laser based rangefinder technology.

The laser-based snow depth sensor Lufft SHM 31 stands for millimeter-accurate snow level detection over long distances in all weather conditions without any maintenance, due to opto-electronic/laser based rangefinder technology.

  • Snow depth
  • opto-electronic measuring technique (rangefinder; laser distance sensor) with eye-safe laser
  • Determination of snow depth over long distances, heating options allow high quality measurements in all weather conditions, simplified installation due to automatic inclination angle compensation
  • RS485 & RS232 with UMB, UMB-ASCII 2.0 & SDI12 protocol
Lufft Snow depth sensor SHM 30 - Lufft snow height sensor SHM 30

Snow Depth Sensor SHM 30

Compact, reliable and cost-efficient - Accurate measurement of snow depth / snow height sensor SHM30 based on an opto-electronic distance sensor / laser rangefinder technology.

Compact, reliable and cost-efficient. The SHM30 snow depth sensor reliably determines snow depths up to 10 meter within seconds and with Millimeter precision, due to opto-electronic/laser based rangefinder technology.

  • Snow depth
  • opto-electronic measuring technique with eye-safe laser sensor
  • Determination of snow depth over long distances, MTBF (meantime between failure) >40.000h, allows discrimination between snow and grass, very compact and weatherproof housing
  • RS232, RS422, analogue output
StaRWIS-UMB - Stationary Road Weather Information Sensor - RWIS, deicing, icy road, winter maintenance

StaRWIS-UMB - Stationary Road Weather Information Sensor

For stationary operations we further developed the innovation award-winning mobile road weather Sensor MARWIS - this is StaRWIS!

StaRWIS is the first non-invasive road and runway weather sensor detecting road conditions, temperatures, friction and other parameters based on innovative LED Technology...

  • Road condition (dry, moist, wet, ice, snow, critical wet, chemically wet), road surface temperature, ambient temperature, water film height, dew point temperature, relative humidity, ice percentage, freezing temperature, friction (calculated)
  • Optical LED transmitters, photo receivers, pyrometer, infrared
  • non-invasive, plug and play, 100 measurement per second, multifunctional, wireless data transfer, no moving parts
  • Bluetooth, RS485, CAN-Bus, UMB - protocol

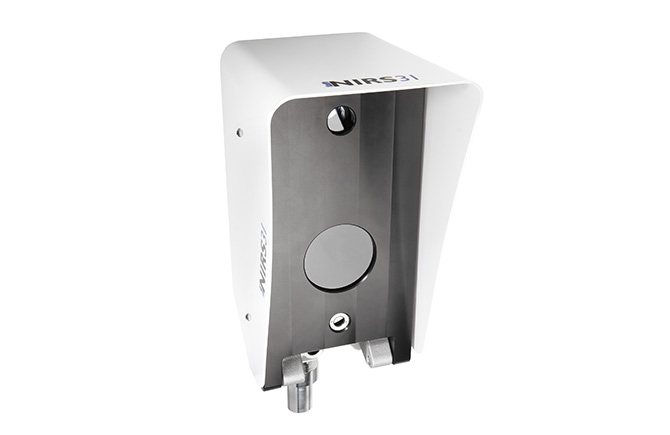

Non-invasive road weather sensor, RWIS, road sensor, stationary road weather system, road weather, friction

Non Invasive Road Sensor NIRS31-UMB

The NIRS31-UMB is a non-invasive road weather sensor with optical principle. It is mounted several meters above the ground and can even monitor bridges...

The NIRS31-UMB is a non-invasive road weather sensor with optical principle. It is mounted several meters above the ground and can even monitor bridges...

  • Layer thickness of water, snow and ice, surface conditions (dry, damp, wet, snow, ice), friction, optional: road surface temperature
  • Optical principle, pyrometer
  • non-invasive, easy to install and add to existing measurement networks, friction measurement, real time data providing
  • UMB-binary, SDI-12, ASCII-UMB, analog outputs in combination with digital-analog-converter DACON8-UMB

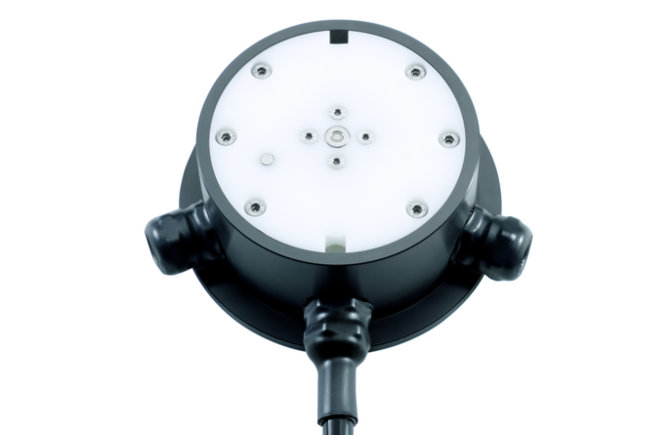

Lufft ARS31-UMB active road sensor - road weather station - rwis - motorway - highway - runway

Intelligent Active Road Sensor ARS31-UMB

The embedded active road weather sensor ARS31-UMB detects freezing temperatures independently from de-icing materials and is easy to maintain through its two parted housing…

The embedded active road weather sensor ARS31-UMB detects freezing temperatures independently from de-icing materials and is easy to maintain through its two parted housing…

  • freezing point
  • active cooling and heating (Peltier element)
  • Two part housing design allows easy maintenance/re-calibration, low energy consumption allows solar operation, freezing point determined independently from de-icing material
  • RS485

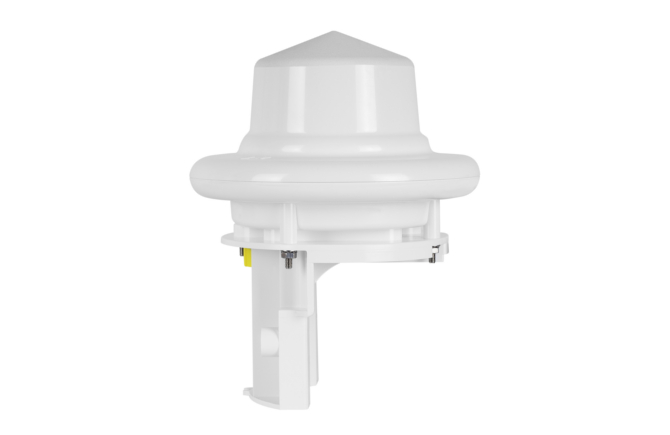

Lufft R2S radar rain sensor - maintenance-free detection of rain - fast response time - rain type - precipitation gauge

Radar Precipitation Sensor R2S-UMB

The radar precipitation sensor Lufft R2S-UMB allows fast measurement of precipitation intensity and distinguishs between precipitation type (Rain, snow, sleet, freezing rain, hail). The operation is maintenance-free, thanks to radar measurement technology

The radar precipitation sensor Lufft R2S-UMB allows fast measurement of precipitation intensity and distinguishs between precipitation type (Rain, snow, sleet, freezing rain, hail). The operation is maintenance-free, thanks to radar measurement technology.

  • Rain/precipitation quantity, rain/precipitation type (Rain, snow, sleet, freezing rain, hail)
  • 24GHz Doppler radar
  • Very fast response time, maintenance-free measurement, present weather detection
  • RS-485, various RS-485-protocols, analogue output

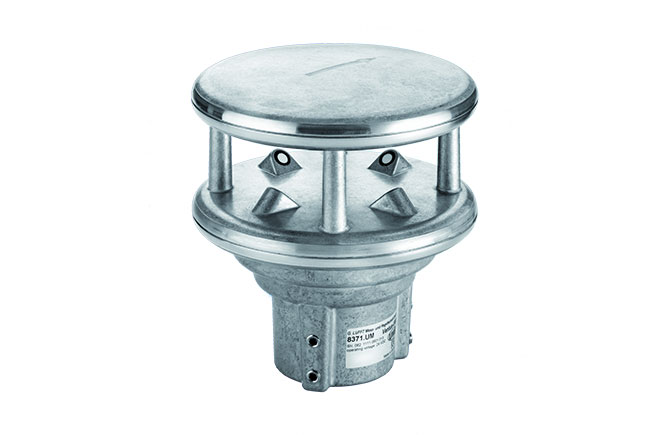

VENTUS Anemometer - ultrasonic wind sensor - sonic wind sensor for wind turbine control

VENTUS-UMB Ultrasonic Wind Sensor

Extremely precise and maintenance-free measurement of wind speed and wind direction even in the lowest temperature

Thanks to the ultrasonic measuring method the wind sensor Lufft Ventus has no moving parts and therefore needs almost no maintenance. It measures wind speed and wind direction according to the WMO guideline and acquires the barometric pressure.

  • Wind speed, wind direction, virtual temperature, barometric pressure
  • Ultrasonic
  • Maintenance-free measurement, suitable for extreme ambient conditions, ice-free operation, vibration and seawater resistant, compatible interfaces
  • SDI-12, RS-485 with supported protocols Binary, ASCII, NMEA, Modbus & analogue output

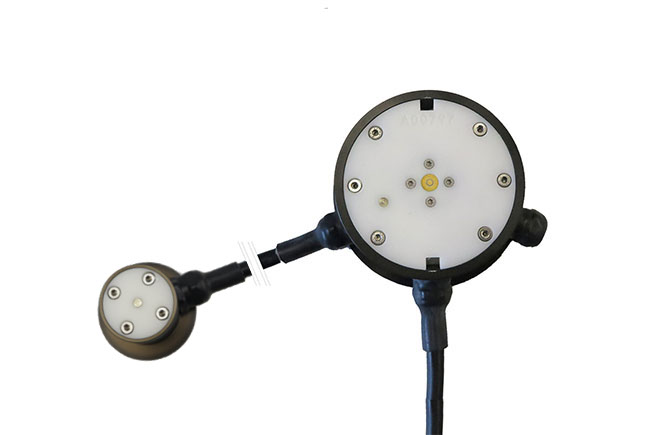

Lufft ARS31Pro-UMB active road sensor - road weather station - rwis - motorway - highway - runway

Intelligent Active Road Sensor ARS31Pro-UMB

Detection of freezing temperatures independently from de-icing materials as well as road surface temperature with the embedded active road weather sensor ARS31Pro-UMB. Easy to maintain through its two parted housing…

  • road surface temperature, freezing point
  • active cooling and heating (Peltier element), NTC (road surface temp.)
  • Two part housing design allows easy maintenance/re-calibration, low energy consumption allows solar operation, freezing point determined independently from de-icing material
  • RS485

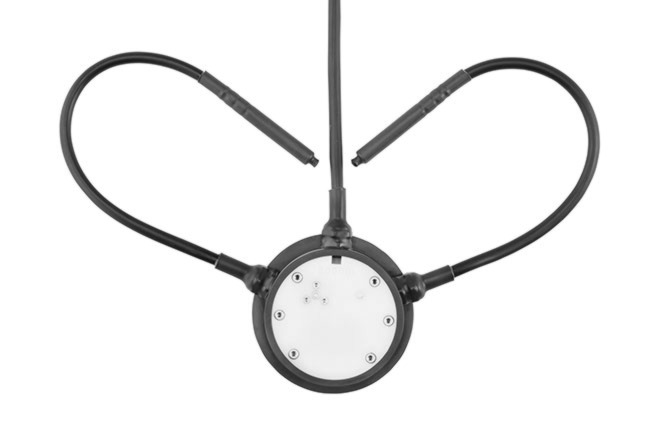

Lufft IRS31Pro-UMB passive road sensor - road weather station - rwis - motorway - highway

Intelligent Passive Road Sensor IRS31Pro-UMB

The passive road sensor IRS31Pro-UMB convinces by its two part housing design and accurate detection of road surface temperature, water film height, freezing temperature, ice percentage and many more...

The passive road sensor IRS31Pro-UMB convinces by its two part housing design and accurate detection of road surface temperature, water film height, freezing temperature, ice percentage and many more...

  • Road surface temperature, water film height up to 4mm, freezing temperature for different de-icing materials (NaCl, MgCl, CaCl), road condition (dry/damp/wet/ice or snow/moist with salt/wet with salt), friction, ice Percentage, 2 additional depth sensors
  • Conductivity measurement (ice percentage), radar measurement (water film), NTC (road surface temp.)
  • Two part housing design allows easy maintenance/re-calibration, low energy consumption allows solar operation, radar principle to measure water film
  • RS485, SDI-12, analogue outputs

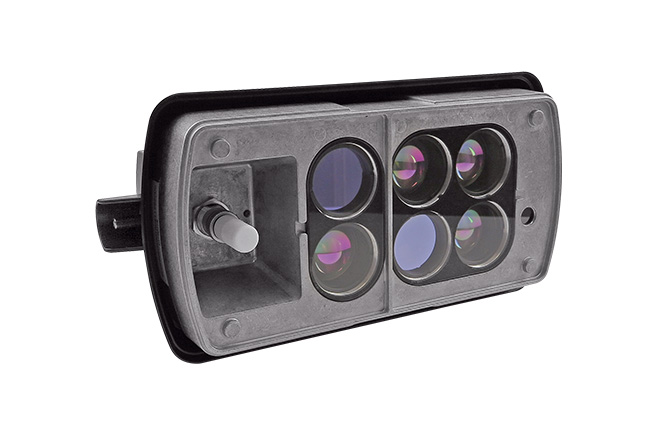

Lufft MARWIS-UMB mobile advanced road weather information sensor - road weather - road weather information sensor - rwis - motorway - highway - runway - airport - road weather sensor - road sensor - mobile sensor - friction

MARWIS-UMB - Mobile Advanced Road Weather Information Sensor

MARWIS is the first road and runway weather sensor detecting road conditions, temperatures, friction and other parameters mobile and in real time from driving vehicles...

MARWIS is the first road and runway weather sensor detecting road conditions, temperatures, friction and other parameters mobile in real time for vehicles.

  • Road condition (dry, moist, wet, ice, snow, critical wet, chemically wet), road surface temperature, ambient temperature, water film height up to 6mm, dew point temperature, relative humidity, ice percentage, friction (calculated)
  • Optical LED transmitters, photo receivers, pyrometer, infrared
  • Mobile, plug and play, 100 measurement per second, multifunctional, real time thermal mapping, wireless data transfer
  • Bluetooth, RS485, CAN-Bus

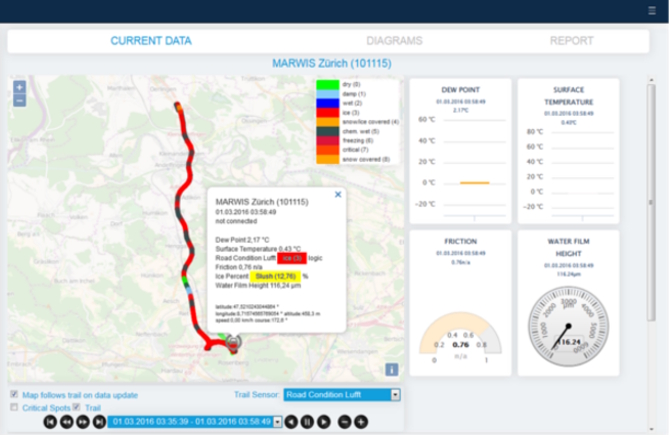

ViewMondo - Road & Runway Management Software - weather data - ice detection - salt spreading recommendation

ViewMondo - Road & Runway Management Software

ViewMondo, the flexible Lufft Road & Runway Management Software, that collects different types of data, checks the data for plausibility and evaluates data and recommendation out of the data in according to your needs!

ViewMondo, the flexible Lufft Road & Runway Management Software, that collects different types of data, checks the data for plausibility and evaluates data and recommendation out of the data in according to your needs!

Brochure - Lufft - Weather Critical Operations (EN)
Traffic weather, renewable energies and more
Brochure - Lufft - MARWIS (EN)
Brochure - Lufft - Image brochure (EN)
Image Brochure with description of all Lufft market segments
Lufft - ISO9001 - 2008 - Certificate (EN)
Video - Lufft: a passion for precision (Corporate Video)

Traffic Weather - Save Arrival with the Right Measurement Technology

Black-ice early warning systems help you to operate a proactive winter service and keep critical microclimates such as bridges constantly in view.
Mobile and stationary measuring technology gives you information at any time - not only about individual measuring points, but also about the road conditions throughout your entire road network.
Traffic Management Systems (TMS) require real-time information, not only about road conditions but also about wind conditions (on bridges) as well as visibility, in order to display the optimum speed in each case via variable warning signs.

Water film height and aquaplaning risk:

Water film height is measured in micrometers. From as little as 10 micrometers, a road is no longer dry. With more than 700 micrometers (0.7 mm), there is a risk of aquaplaning.

Grip and the influence of weather:

The grip depends on the tire, the asphalt and the water / snow / ice layer. This weather-related intermediate layer is the key factor as far as friction is concerned.

Mobile vs. single point / stationary measurement:

A single measurement point is often not representative of the actual road condition. Optical, non-contact methods sample a representative surface area instead of a point. They also measure up to 100 times per second, while the measuring vehicle is in motion.

Do you have any questions or do you need advice?

Get in contact with us

Overview of our Road Weather Product Range

We offer a wide range of sensors and measurement parameters, which have a high influence on the safety in all of this traffic segments, whether this is on airports, roads, ships or on trains.

  • Road & Runway sensors: Built-in? Active or passive - or both? With or without below ground temperature measurement? Or maybe you prefer non-invasive? Stationary or mobile? We have them all - In operation on motorways, highways and airport runways all around the world!
  • Weather sensors / weather stations: The Lufft All-in-One concept convinces by its easy installation and configuration as well as integration into excisting monitoring systems / software solutions.
  • Visbility Sensors: State of the art in fog detection for Road Weather Information Systems (RWIS), Airport Weather Observation Systems (AWOS) and Coast Navigation Systems. The product family of Lufft visibility sensors providing highly accurate results with minimum maintenance and absolute reliability.
  • Wind sensors: Variaty of different ultrasonic wind sensors, used on airports as well as on ships like the research vessels of the DWD (German weather service)
  • Cloud height sensors / Ceilometers: How high are the clouds? How many cloud layers are detected? Is the cloud detection limited by precipitation or mist? These are questions among others around the topics of clouds and visibility which AWOS (Airport weather observation system) is dealing with. An answer is delivered by cloud height meters / ceilometers which work with lidar technology.

Do you have any questions or do you need advice?

Get in contact with us

Back to overview
